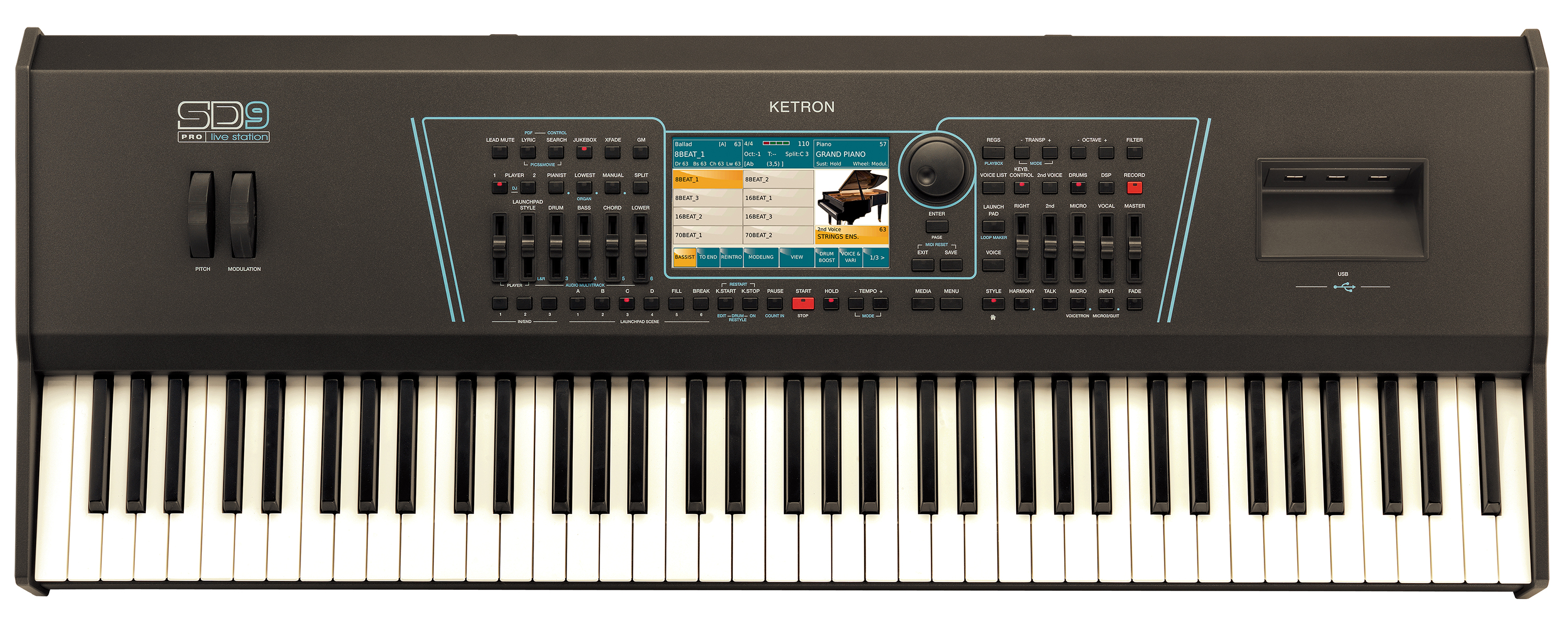

Clavier : 76 notes semi lestées, 4 niveaux de vélocité, AfterTouch, portamento, Modulation/pitch, Transposition +/-4, +/-2 Octave
Polyphonie de 128 notes, 48 parties de multitimbralité
Ecran Led couleur tft 7", sensitif 800x480 pixels, luminosité réglable
Player : Fichiers reconnus : Wav, Midi, Mp3, Mp4, Avi, Mov, Flv, Cdg, Jpg, Txt, Pdf.
Fonctions du player multimédia :Marker, sync/next, autoplay, lead mute, GM part, lyric off, cross fade, file search, play list, my folder, transposer, time stretching,metronome click, midi multimix, song drum restyle.
Lecteur Multipistes : 5 + 1 Audio
JukeBox : PlayList, my folders, effets spéciaux SFX
Films et Photos : Jpg & Mp4, Avi, Mov, Flv, karaoke background, movie/PDF to RGB, pic list, autoshow, Dvi: video monitor out, karaoke lyric /Mirror
Menu :Disk, midi, play modes, audio edit, language, footswitch, preferences, controls, video, reg, set up, arabic mode, micro/Vocal, mic2/Guitar, juke box, DSP, records
Médias : Stockage interne : SSD de 16Gb, USB : 3 x Host + 1 x device , cartes SD
Générateur sonore : 668 GM sounds, 5 sound banks, voice list, 48 drum sets + stereo special kit, live drum modeling.
Voies : 368 preset voices, new stereo grand piano, 368 user voice, 2nd voice, V-tone, double up/Down, harmony, EFX insert, voice editing.
Arrangeur : 260 styles full audio drum and groove equipped, user style section, midi drum mixer & remap, 4 arranger ABCD, 4 fill, 4 break, 3 intro, 3 ending, drum, groove, bass, chords 1-5, lower 1-2, auto fill, fill to arrange, to end, reintro, key start, key stop, restart, count in, drum boost,4 voice set, voice to ABCD, voice & vari, 5 user tabs, V-tone.
Modes : Pianist (Auto-standard), bassist (Easy, expert), manual bass, bass to lowest.
Style Modeling : Interactive modeling library with massive audio drums, bass, latin groove, piano, guitar and orchestral templates.
Modes de Jeu : master keyboard, accordion style, accordion classic, guitar mode with Efx (thru input).
Registrations : 4 bank x 1024 regs, full panel and function programming
DSP Type: chorus, reverb, flanger, phaser, tremolo, rotary, echo delay, tap delay,equalizer, distortion, amp simulator, compressor, filter, EFX insert (54 types), 10 programmable insert chains.
Enregistrement : HD recording: 1 stereo track, loop, audio edit with cut, normalize, midi recording, phrase and song.
Entrée micro : LR input, gain control, volume, reverb, micro on/Off edit, talk.
Voicetron : 3 voice vocalizer, 10 voicetron presets + 10 user.
Manuel d'utilisation dans le module en HTML

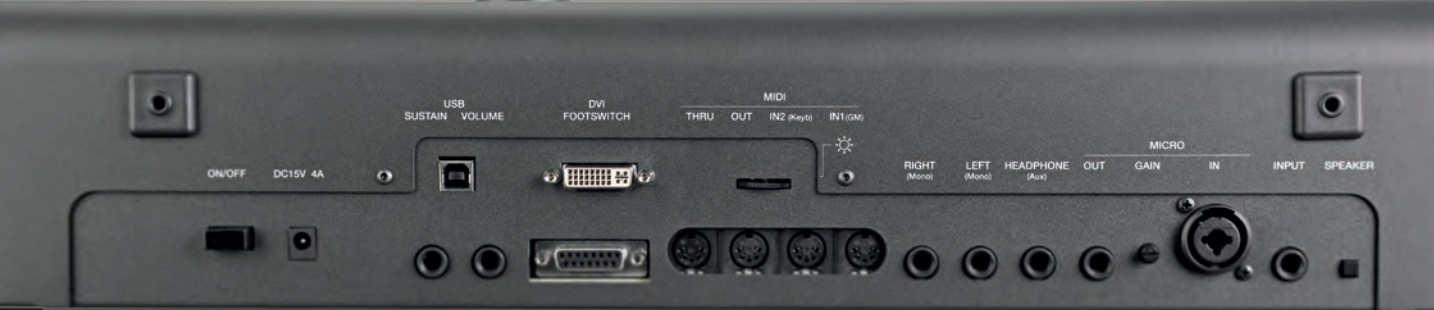

MIDI : in1 (Gm), In2 (Keyb), out, thru, midi setup: standard, computer & sequencer, keyboard right, accordion, player, style.
Sorties : Left/Right stereo, pedal volume, micro out.
Entrées guitare ou micro2
Sortie casque, sorties séparées pouvant être assignées à la batterie, basse ou click
Options : pédalier 6 ou 13 effets, pédale de volume, pédale de sustain housse et étui
Alimentation 9V/4A
Dimensions : 108,5 x 14,5 x 40cm
Poids : 16Kg
